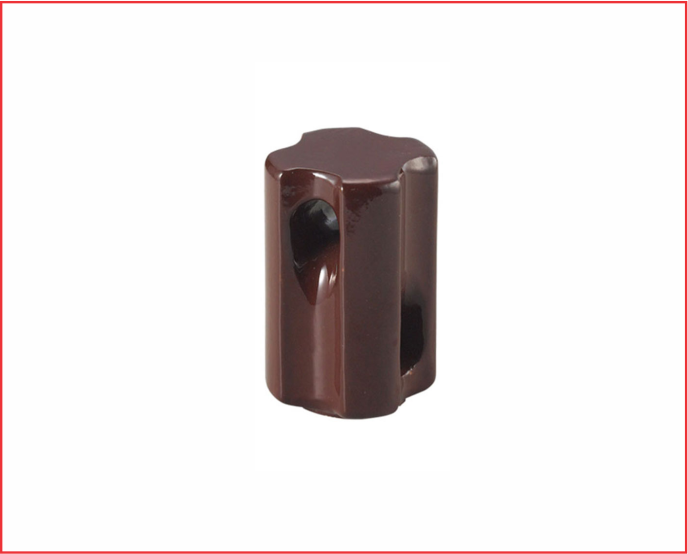

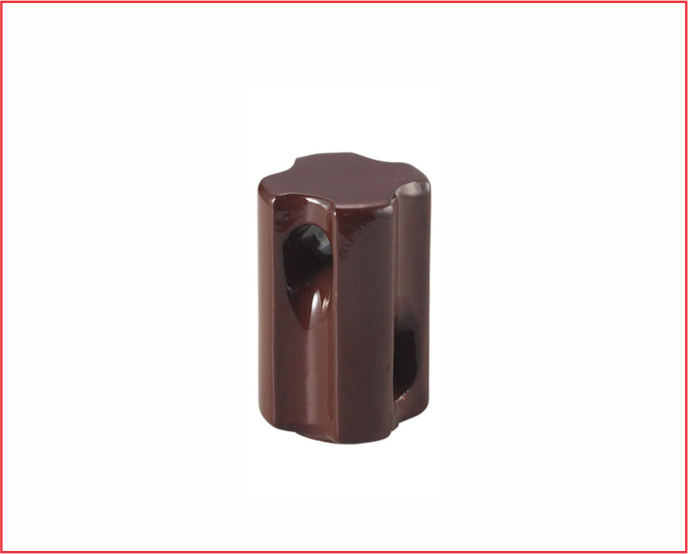

Stay Insulator LV

- To be used with an LV stay kit assembly.
- Tensile Load: 45kN.
- All tolerances are according to IEC 60383.

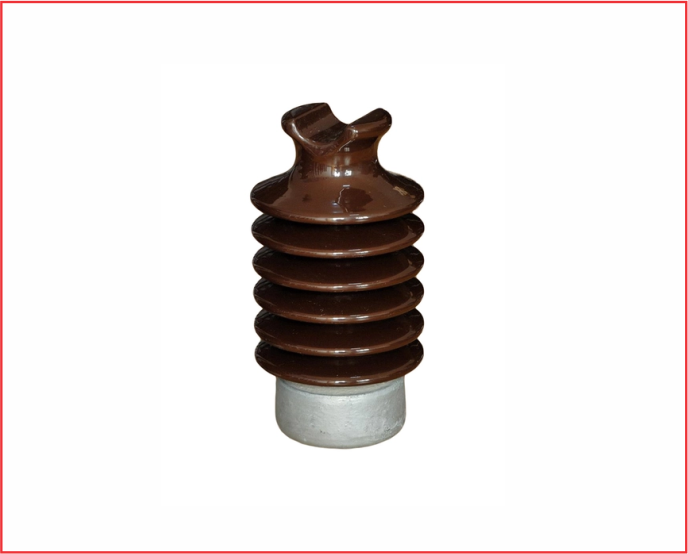

Line Post Insulator - Capped

- Range from 11 kV to 44 kV.
- Creepage from 300 mm to 1120 mm.
- Material: Porcelain with a metal cap.

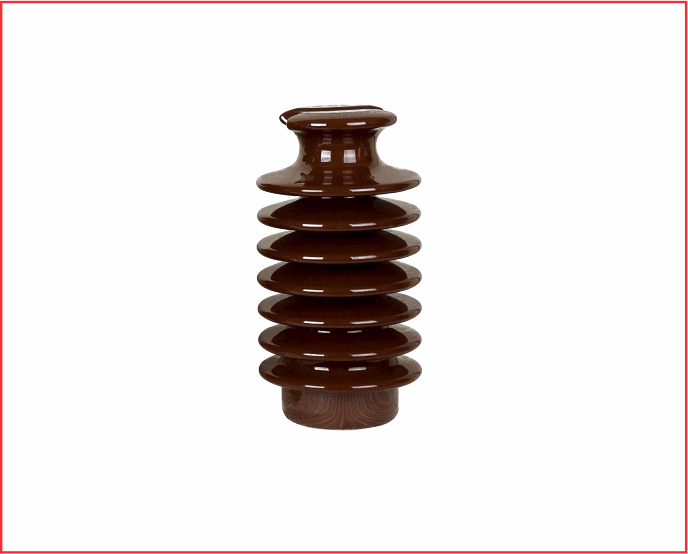

Line Post Insulator - Capless

- Range from 11 kV to 33 kV.
- Creepage from 400 mm to 1120 mm.
- Material: Porcelain without a metal cap.

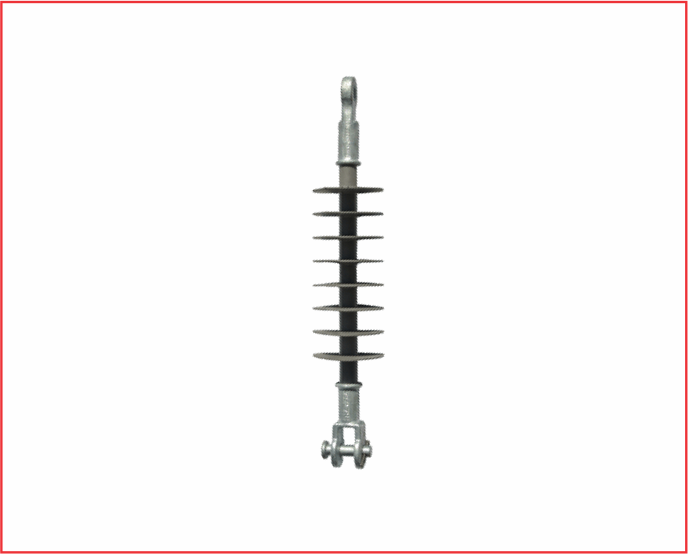

Silicone Long Rod Insulator

- Range from 11 kV to 132 kV.
- Creepage from 402 mm to 4495 mm.
- Material: Silicone, Clevis Tongue, or Ball Socket.

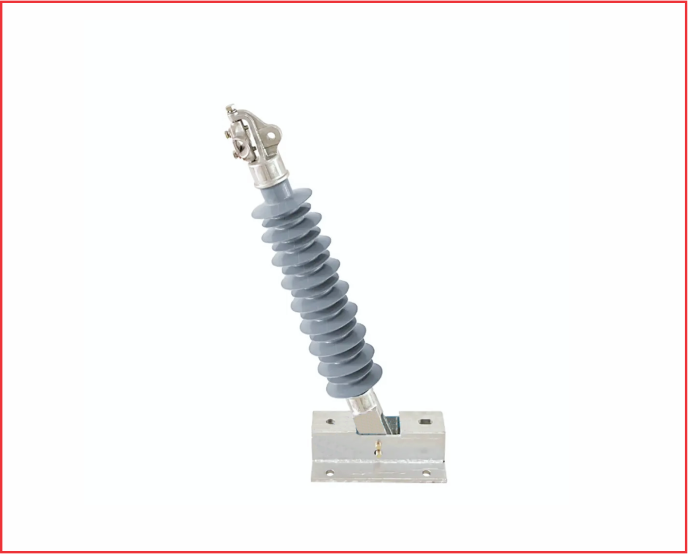

Silicone Line Post Insulator

- Range from 11 kV to 36 kV.
- Creepage up to 1120 mm.
- Material: Silicone.

Stand Off Insulator

- Range from 66 kV to 132 kV.
- Creepage up to 4495 mm.
- Material: Silicone.

MV Stay Insulator

- To be used with an MV stay kit assembly.
- Tensile Load: 96 kN.
- All tolerances are according to IEC 60383.

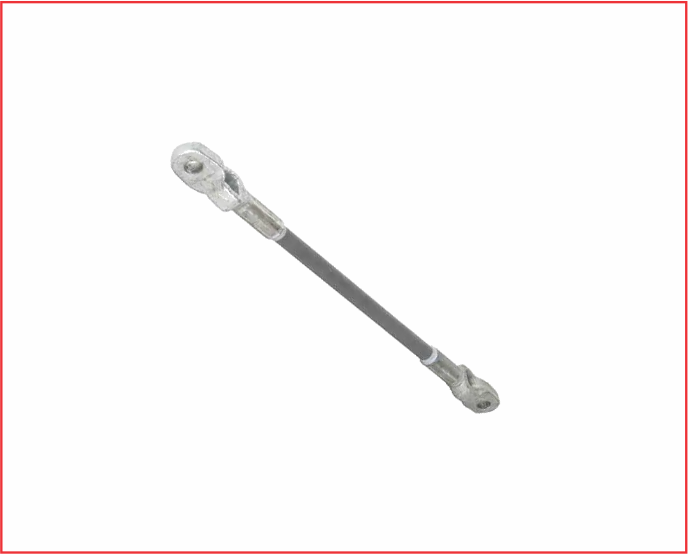

Guy Strain Insulator

- To be used with an MV stay kit assembly.
- Tensile strength 97 kN.
- Silicone-coated fiberglass rod and ductile.

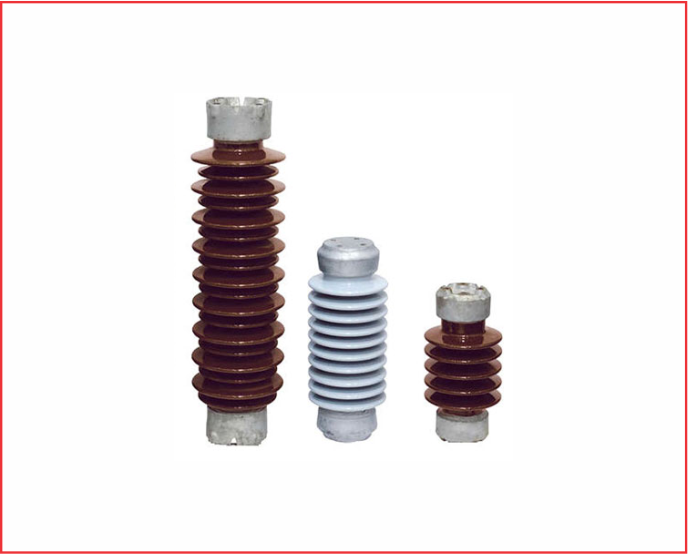

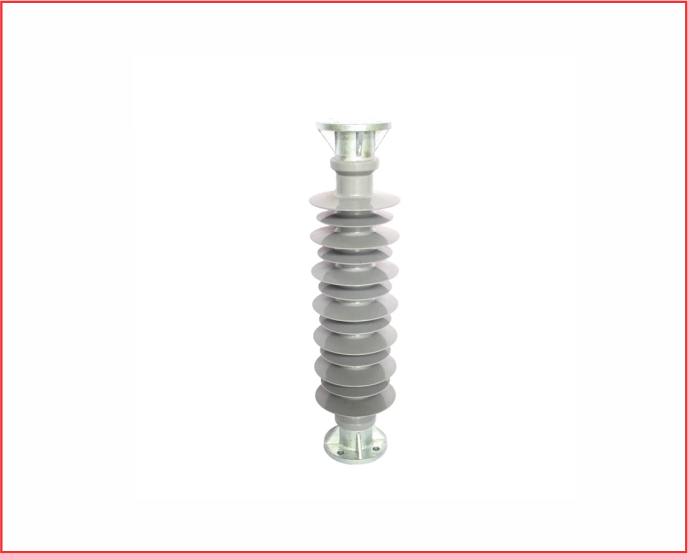

Station Post Insulator

- Rated at 4 kN to 10 kN.
- Range from 11 kV to 132 kV.
- Used in Substations.

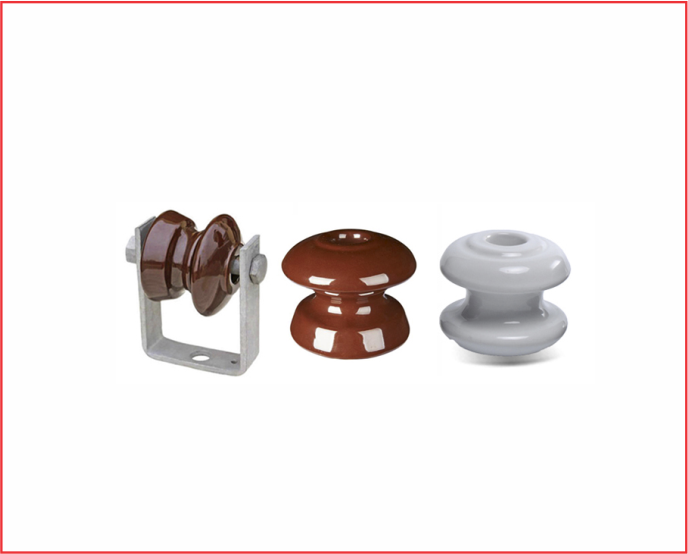

Shackle / Reel Insulators

- For use on systems up to 1000 V.
- Material: Porcelain.

-
